Setting up the IGL (only required for the reports feature turned on)

Proceed with this step only if you managed to install the module and connected the vehicle to the app correctly.

Checking the gas sensor type

Before you proceed with the IGL calibration, please make sure that the gas sensor type is the one with WPGH. You can find this information on the vehicles page or the vehicle module page (settings tabs section). If your gas sensor type is WPGH you can proceed with the calibration, otherwise the IGL calibration is not possible.

Module

Figure 4.1.1 - Gas level indicator configuration window

The current status of the "Intelligent Gas Level" function is shown in the software. Status options:

Inactive - the function is OFF
Active - gas level is calculated by the "Intelligent Gas Level" function
Calibration is not done - the function is OFF and waits for auto-calibration of the WPGH indicator; it does not perform a gas level calculation
Unsupported sensor type - the installed gas level sensor is not supported (WPGH version is required)
The learning process (stage1) - after the WPGH indicator autocalibration - the function waits until the driver uses all gas in the tank and fills up to full
The learning process (stage2) - the function waits until the driver uses all gas in the tang again and fills up to full
Waiting to refuel - the function was not able to detect the initial level of gas; this is why it's on hold until the tank is filled up again; this may be the case when the tank has not been refilled to full

In the STAGTELEMATIC application you will be able to see the stages of the IGL on the all vehicles view in the IGL column.

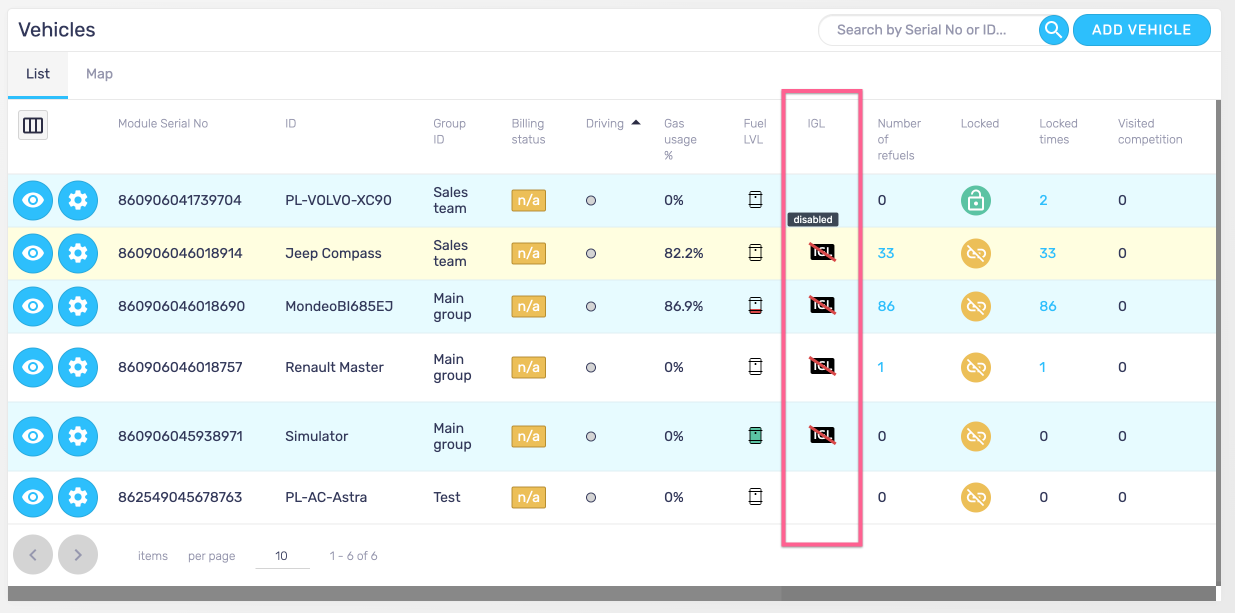

Figure 4.1.2 - IGL stages can be seen on the "all vehicles view"

IGL calibration

This function is used to indicate the level of gas to the user more precisely (on the LED switch panel) without the impact of the terrain slope. It is particularly important in the mountain area, where long uphill driving or long downhill driving results in indications that do not represent the actual gas amount in the tank. This problem should be eliminated by the described function.

Perform the following steps to use the function:

1. Perform WPGH level indicator auto-calibration
2. Use all gas in the tank
3. Fill up the tank to full
4. Use all gas in the tank

When the above-mentioned steps have been performed, the displayed gas level will be calculated based on the used gas, instead of the WPGH indicator signal.
